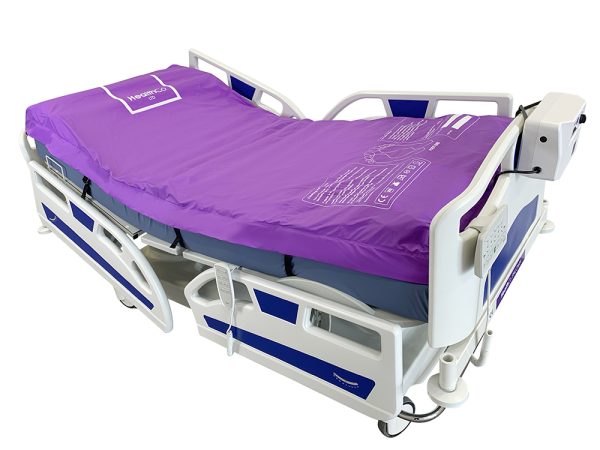

The HealthCo Supreme is a high quality 5” Overlay Mattress, encompassing 18 independent air cells. A second mattress version is also available to form a Replacement Mattress through the addition of foam to the underside of the cells.
The static head cells, 1:2 alternation, high quality, multi-stretch cover and nylon/TPU cells throughout, delivers excellent clinical performance and user comfort.
Additionally, the mattress has a moulded, ‘twist-type’ CPR and is fully covered by the CE mark.
THE PUMP
The HealthCo Supreme Pump is a very efficient 1:2 alternation pump, operating on 12 minute cycle time and is an excellent alternative to the traditional ‘brick-style’ design.
The low-noise, semi-digital pump, incorporating the highly popular compressor, is also very robust and easy to handle and operate.
Containing an audible and visual low-pressure alarm, this pump covers all the basic alarm requirements, however an optional audible power failure alarm can also be added if required.
Mattress |
|
Dimensions (L x W x H) cm |
200×88/90×13 |
System Alternation |
1:2 |
CE Mark |
Yes |
Warranty Period F.O.B. Taiwan |
13 months |
Cells |
|
Number of Cells |
18 |
Cell Material |
Nylon/PU |
Cell Height |
5” |
Static Head Cells |
Yes (1:3) |
Narrow Heel Cells |
No |
Narrow Cells in Sacral Area |
No |
Cell Structure |
Standard |
Micro Low Air Loss Holes |
Optional (6:13) |
Continuously Inflated Base Cells |
No |
Cell Colour |
Blue |
Cell Thickness mm |
0.17mm |
Tubing |
|
Anti-Kink Piping |
No |
Piping Material |
PVC |
Cell Connection Type |
T&L |
Cover |
|
Cover Material/Type |
Nylon/PU |
Cover Colour |
Violet |
Zipped Cover |
Yes |
Stitched/Welded Cover Seams |
Stitched |
Water Resistant |
Yes |
Vapour Permeable |
Yes |
Top Cover Fire Retardancy Rate |
Crib 5 |
Top Cover Washing Temp |
95ºC |
Base |
|
Base Material |
Polyester /PVC |
Base Colour |
Black |
Under Cell Foam Option |
Yes/No |
Maximum User Weight |
160kg |
Fixing Straps (Webbing/Elastic) |
Webbing |
CPR Type |
Twist Type |
High End Sensor Pad |
No |
Washing Label Inside |
Yes |
The Pump |
|
Control Unit Platform |
|
Alternation |
1:2 |
Control |
Semi-Digital |
Auto Sensing |
No |
Digital Display |
No |
Power Indicator |
Yes |
Power Failure Alarm – Visual |
No |
Power Failure Alarm – Audible |
Optional |
Low Pressure Alarm – Visual |
Yes |
Low Pressure Alarm – Audible |
Yes |
Cycle Time |
12 min |
Adjustable Cycle Times (Set/Variable) |
Set |
Pressure Capacity |
20-60 (+/-6)mmHg |
Adjustable Pressure Control Range |
Dial, Min-max |
Air Output Compressor Capacity |
4.5 LPM |
Alternating/Static Toggle Switch |
No |
Auto Return to AP Mode |
No |
Time to Return from Static to AP Mode |
N/A |
Noise Level |
32dB in 2 meters |
Nursing/Auto-Firm Inflation |
No |
Time to Return from Max to AP Mode |
No |
Control Panel Lock |
No |
Fowler Setting |
No |
Time to Return from Fowler (Static) to Fowler AP Mode |
No |
Battery Back-Up |
No |
Auto Weight Detection (controlled by software)/Pressure Mat (controlled by sensor pad) |
No |
Power |
|
Power Input |
220-240V 50Hz |
Number of Fuses |
1 |
Power Plug (4 m Cable) |
UK (Undetachable) |
Housing Design |
|
Dimension (L x W x H) in cm |
26 x 12 x 16 |
Weight |
1.6 kg |
Connector |
3 port |
Hanging Brackets for Bedframe |
Yes |
Warranty Period F.O.B. Taiwan |
13 months |
